Quick Details

  • Condition: New
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: Shenglin
  • Model Number: 4R-8T-1000
  • Structure: Tube Heat Exchanger
  • Liquid Flow Rate: 2.5m/s
  • Maximum Working Pressure: 3.0MPa
  • Voltage: 220V/50Hz
  • Weight: 47kg
  • Dimension(L*W*H): Custimized Made
  • Power(W): 58kw
  • Certification: ROHS
  • Warranty: 12 Months
  • After-sales Service Provided: No overseas service provided
  • Product Name: heat exchanger
  • Tube material: Copper
  • Plate material: Galvanized Sheel
  • Fin material: Auminum
  • Tube O.D.: 12.75
  • Fin space: 2.5mm
  • Test pressure: 3.0Mpa
  • Fin thickness: 0.115mm
  • Application: Refrigeration Parts
  • Color: White

Packaging & Delivery

Packaging Details After strict inspect, every condensers carefully put into bubble wrap,
then carefully packed by carton box.
Delivery Time 30days from confirming the condenser
Product Description

air conditioning condenser   specifiications


1.Used for:Refrigerator,Freezer,Wine cooler
2.Certificate:UL,RoHS
3.Can be customerized
4.Work Pressure:0.2~3.1MPa
5.Fin space:1.2~3.5mm
6.Tube Diameter:7, 7.94,9.52, 12.5, 12.75

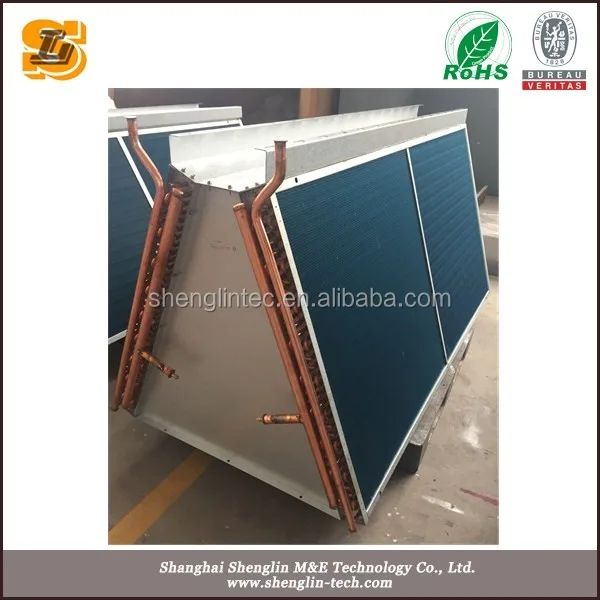

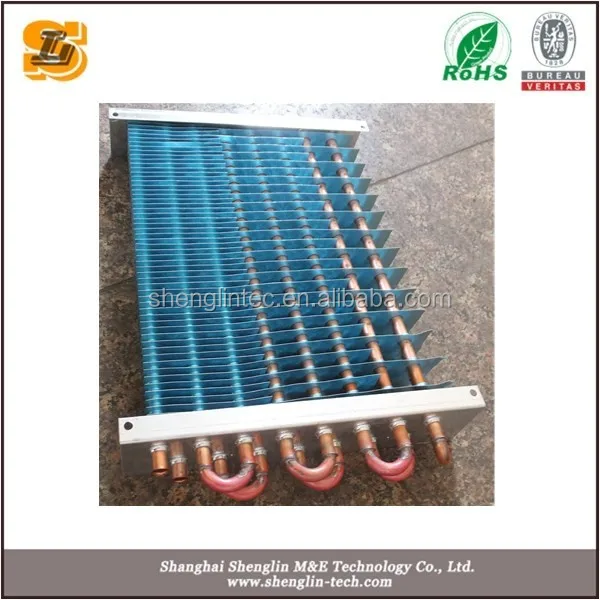

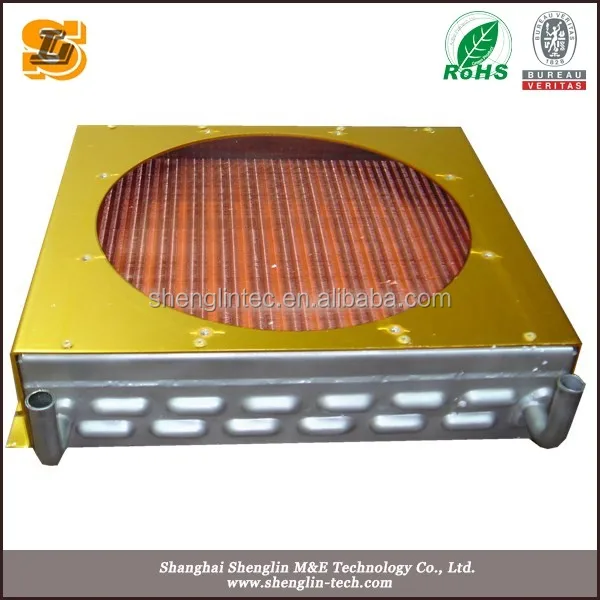

Detailed Images
Item
Type
Operation medium
Operation pressure
(MPa)
Application
1
Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin
Cold/hot water
≤1.6
Used for combined air handling unit, fan coil etc air conditioning devices
2
Φ18/Φ20
Steel pipe winding with steel sheet
Steam
≤0.2
Used for combined air handling unit, fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7
Copper tube with aluminium fin
Brine
≤1.6
Used for heat transfer in cold storage and all kinds of low temperature
systems
4
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin
Ethylene glycol
≤1.6
Used for heat transfer in cold storage and all kinds of low temperature systems
5
Φ16
Copper tube with aluminium fin
Ice mud
≤1.6
Used for dry operation condition, fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin
R22
≤1.9
Used for industry and commerce air conditioning syst
7
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin
R407C
≤1.9
Used for industry and commerce air conditioning system
8
Φ9.52/Φ7.94/Φ7
Copper tube with aluminium fin
R134a
≤3.1
Used for vehicle and vessel etc transportation devices
Features

air conditioning condenser

1. material: copper, aluminum, galvanized plate

2. aluminum foil: hydrophilic or bare

3. fin type: louver fin or flat fin or corrugated fin

4. copper pipe: diameter 7mm or 8mm or 9.52mmor 12.75mm or 15.888mm  ,grooved or smooth tube

5. pitch of fins can be adjusted between 1.8-5.8mm.

6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05mm

7. suitable for R134A, R22, R404A, R407C refrigerant and so on

8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.

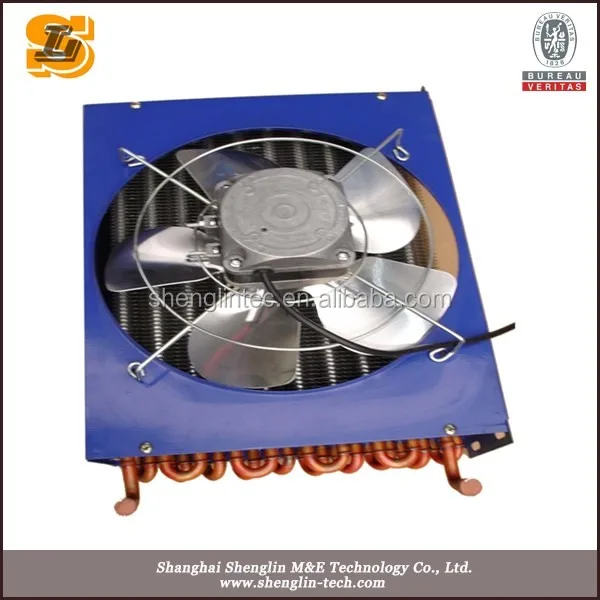

9. different alternative condensing fans available: shaded pole or outer rotor fan motor.

10.did gas examination under 3.0Mpa air pressure to ensure the tightness.

12.widely used in refrigeration industry, cold room and other cooling system.

13. we can supply products as per customized samples or drawing.

14.producing procedure: tube bending, punching fin, expanding, digressing, drying

Welding, leakage test, bending, inspection, packing
Why choose us

1. We have technicians to research, manufacture and develop AUTO AC Parts to assure the quality.
2. We have experienced and dedicated core members to offer you professional and reliable services.
3. We have purveyed customers with a greatest, lowest wholesale price.

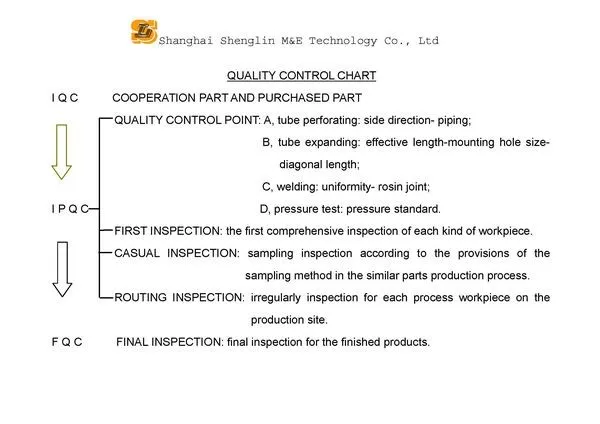

QC TEAM

QC teams with more than 10 professional and technical persoannel to ensure that 100% products are under strict checking and examination.
We provide 1 years warranty of heat exchanger
We can send the parts free on condition that there is any breakdown with convincing evidence.

Packaging

After strict inspect, every air conditioning condenser carefully put into bubble wrap, then carefully packed by carton box.
